DESCRIPTION

Overview

Basic Info.

Model NO.	Z425 Z426 Z427 LZ425 LZ426 LZ427
Surface Treatment	Sand Blast
Surface Roughness	Ra0.05
Standard	GB
Certification	CE, ISO 9001:2000, ISO 9001:2008
Transport Package	Wooden Box
Specification	based on the actual situation
Trademark	ATHI
Origin	Shandong
HS Code	84748020
Production Capacity	1000 Set/Year

Product Description

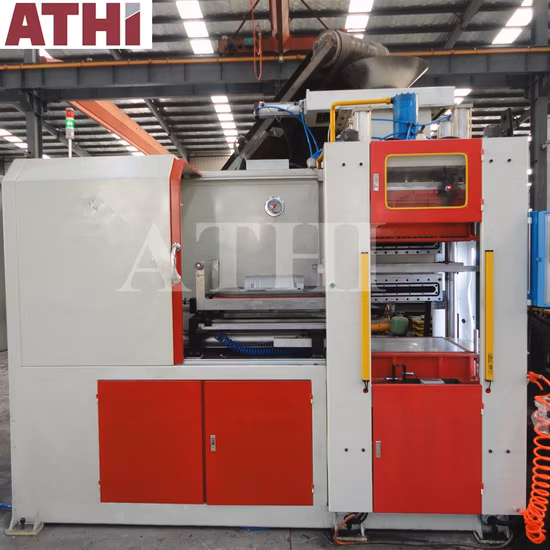

Product DescriptionZ425 Z426 Z427 automatic moulding machineThe fully automatic horizontal flaskless parking molding Machine adopts PLC control, stable and reliable, can realize automatic operation, simple and convenient operation, small area, high productivity, suitable for the production of automotive parts, such as cylinder head, flywheel shell, brake pliers, etc. Also suitable for the production of pipe, valve, shaft, cover plate parts, such as through, three links, bends, pipe clamps and so on. Is the most popular molding equipment in the foundry.

Main technical feature

The molding machine uses double-sided template, the strength of boiling water add sand; sand hardness uniform, high precision box, sand box thickness adjustable; template replacement is convenient; hydraulic oil temperature control to ensure the best equipment operation; the machine easy to operate, double security Protection, visible sand type, user-friendly operating procedures. Effectively improve productivity.

Product prototype based on Japan's new East FNDX models. 2010 FNDX into the Chinese market, in this model for conversion, production for the Chinese market Z42 series of automatic molding machine, shooting sand along the new board of Japan's permeability, air boiling plus sand to ensure that the filling effect of the sand chamber, while large Model development of two independent sand shoots sand device, bin sand injection can be achieved. Compaction by gas and liquid pressure into hydraulic station, greater compaction, sand higher intensity. In the sand thickness adjustment is more convenient, hydraulic station oil temperature cooling using air conditioning, oil temperature and temperature control, double-sided template, replace the template time not exceeding 5 minutes. Template heating device, the heating device on the platen, replace the release agent to reduce operating costs, double security, visual sand conditions, user-friendly operating procedures. Effectively improve productivity.

Z42 Advantage:

1. Improve the production efficiency,save the human resource.

90mold/h capacity.

Horizontal parting flaskless automatic molding machine.

Equivalent to squeeze molding machine 5 sets + 5 worker.

2. Implement quality improvement and stability

Reduce the parting, Improve parting accuracy

With high rigidity guide rod support

Through the support of four high rigid guide rods to achieve high accuracy parting, mould assembling.

The maximum 0.9MPa of the extrusion pressure to improve the quality of the mold.

3.Reduce operating costs, save energy, improve the environment

Reduce the use of sand

Reduce the flying sand, sand scattered

Box up and down in closed state ,molding at the same time

Z42 Feature:

1.Horizontal parting, convenient lower core.

2.Mould height adjustable, save sand.

3.Intelligent control, no need of professional workers, the operation is simple and quick.

4.Can be composed of production lines,also can be stand-alone production.

5.Safety light switch, ensure absolute safety under the core process.

6.High efficiency and stability, 24 hours to run, to provide sustained productivity.

7.Can do complex castings.

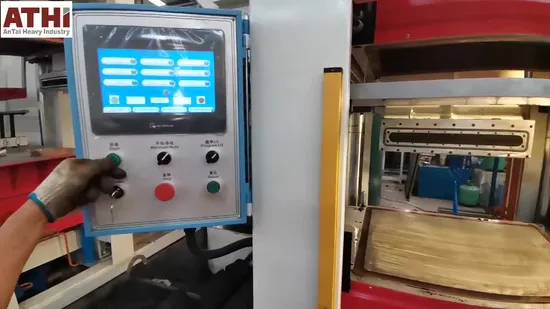

8.Touch screen, parameter modification, immediately visible.

9.Hydraulic power, stable operation, high degree of compaction.

10.The sand box is provided with exhaust holes.

11.Angle of the sand shooting valve can be adjusted.

12.Hydraulic extrusion molding, the operating environment is more quiet.

Detailed PhotosProduct Parameters

Parameter/Model	Z425	Z426	Z427
Foundry flask size(mm)	500*400*120-150550*450*120-150	610*508*130-180660*508*130-180	700*600*130-180600*600*130-180
Productivity(Second/Mould)	36-40	40-45	40-45
Air pressure(Mpa)	0.7-0.9	0.7-0.9	0.7-0.9
Air cunsumption(m³/Min)	1.6	2	2.2
Oil pressure(Mpa)	8.5	10.6	9.2
Total power (Kw)	15	18.5	22
Sand consumption (T/h)	8.6-12	10.5-17	12-22

Parameter/Model	LZ425	LZ426	LZ427
Foundry flask size(mm)	500*400*120-150550*450*120-150	610*508*130-180660*508*130-180	700*600*130-180600*600*130-180
Productivity(Second/Mould)	40-45	45-50	45-50
Air pressure(Mpa)	0.7-0.9	0.7-0.9	0.7-0.9
Air cunsumption(m³/Min)	1.6	2	2.2
Oil pressure(Mpa)	8.5	10.6	9.2
Total power (Kw)	15	18.5	22
Sand consumption (T/h)	8.6-12	10.5-17	12-22

Certifications
